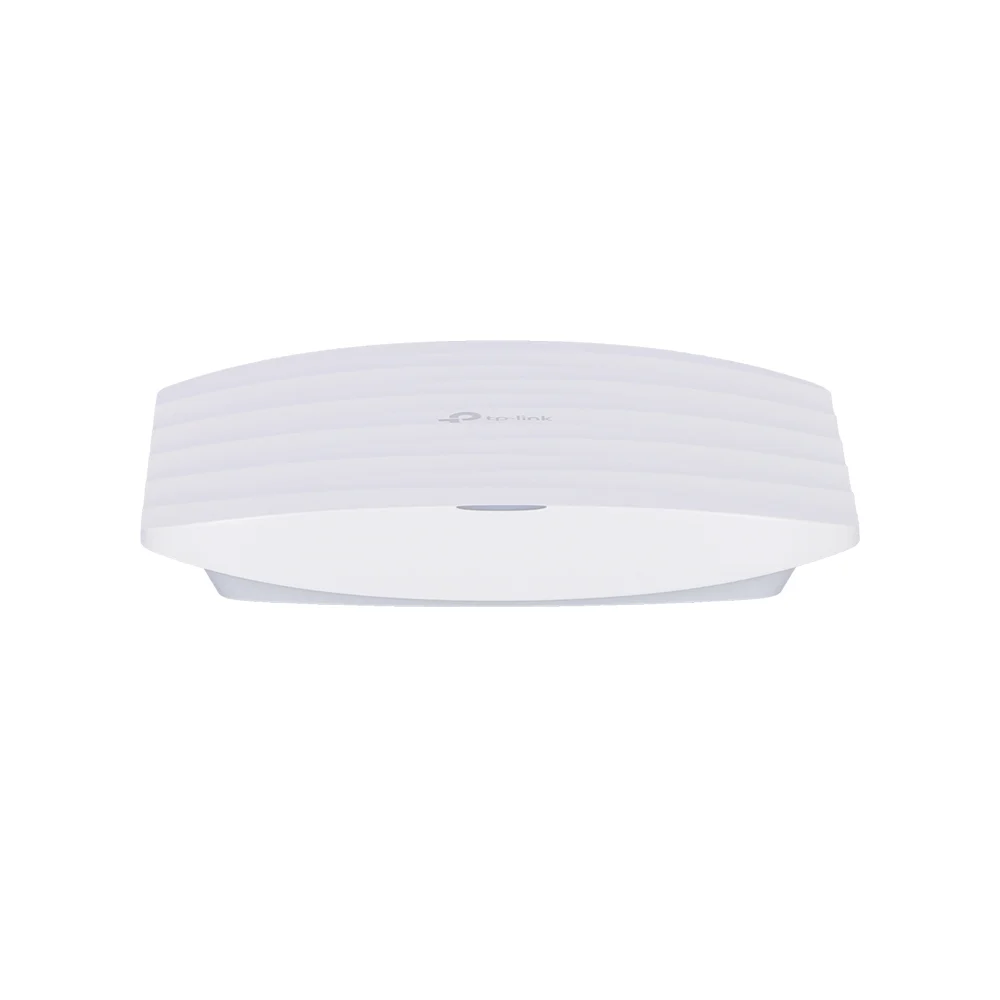

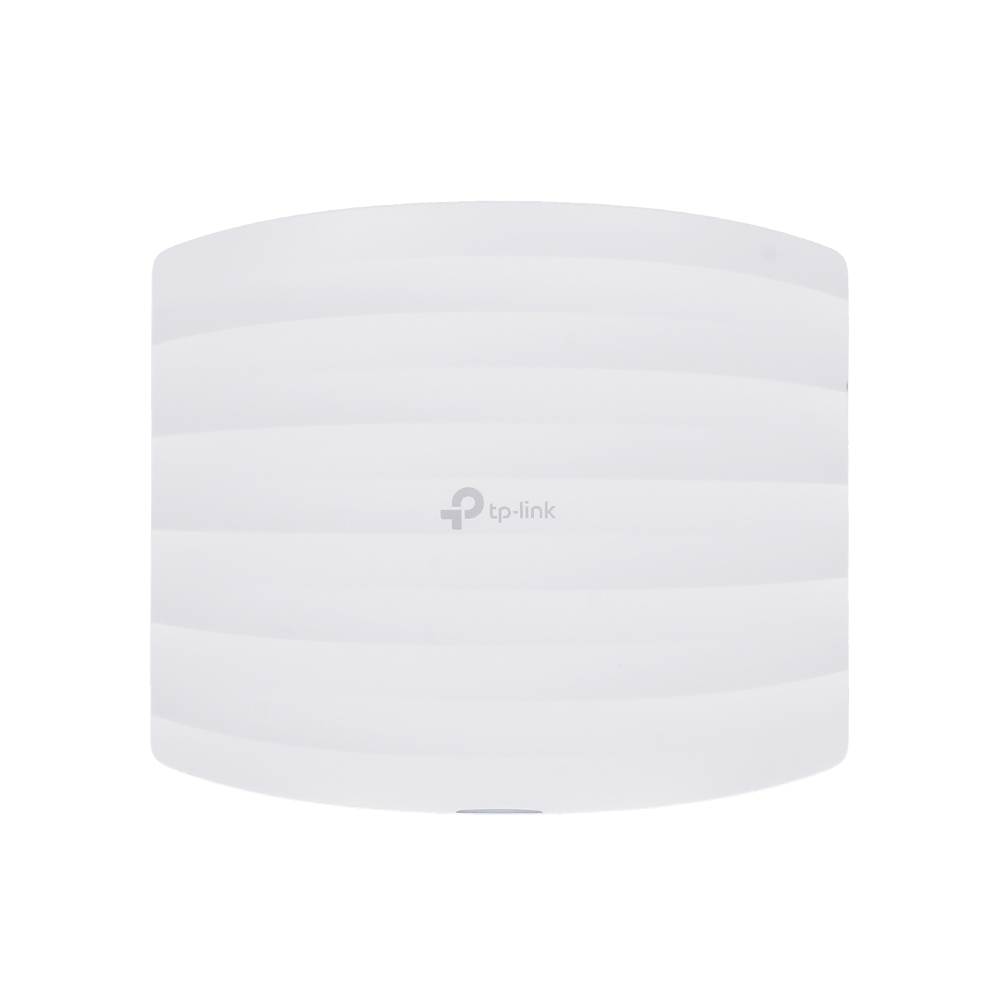

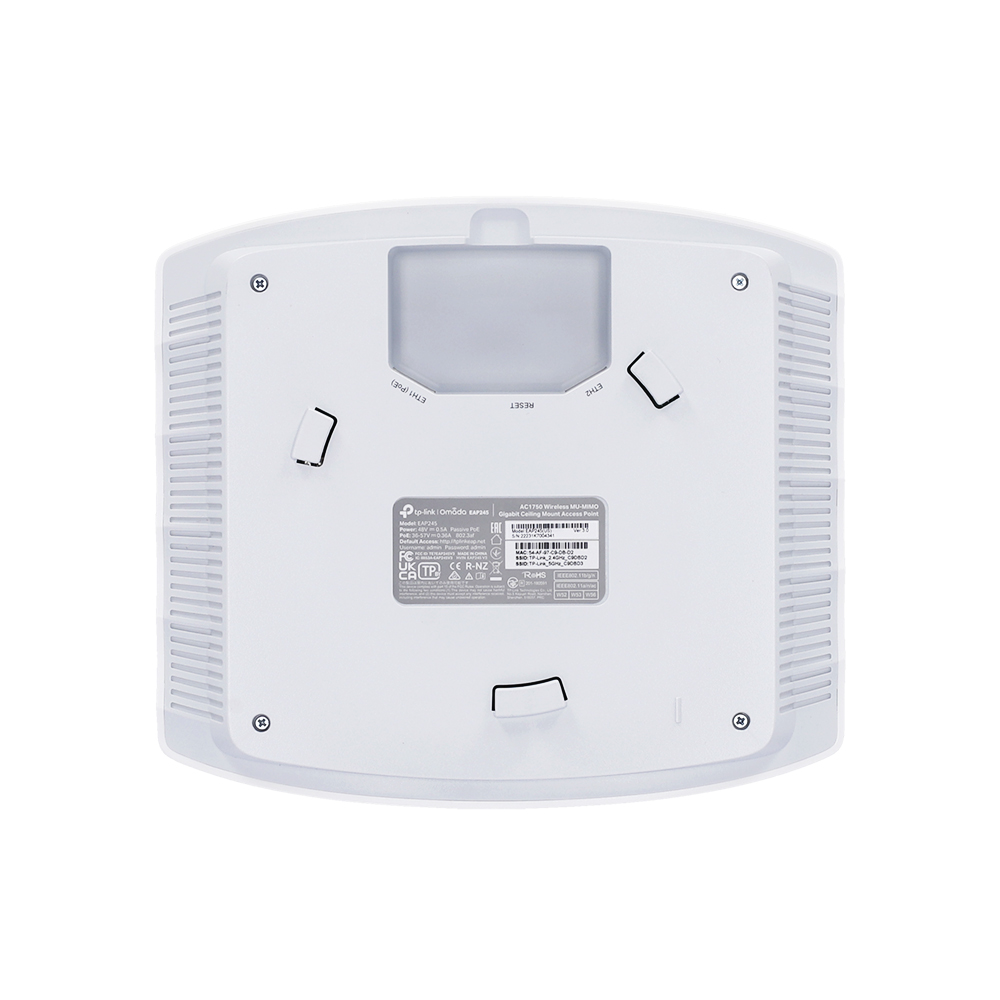

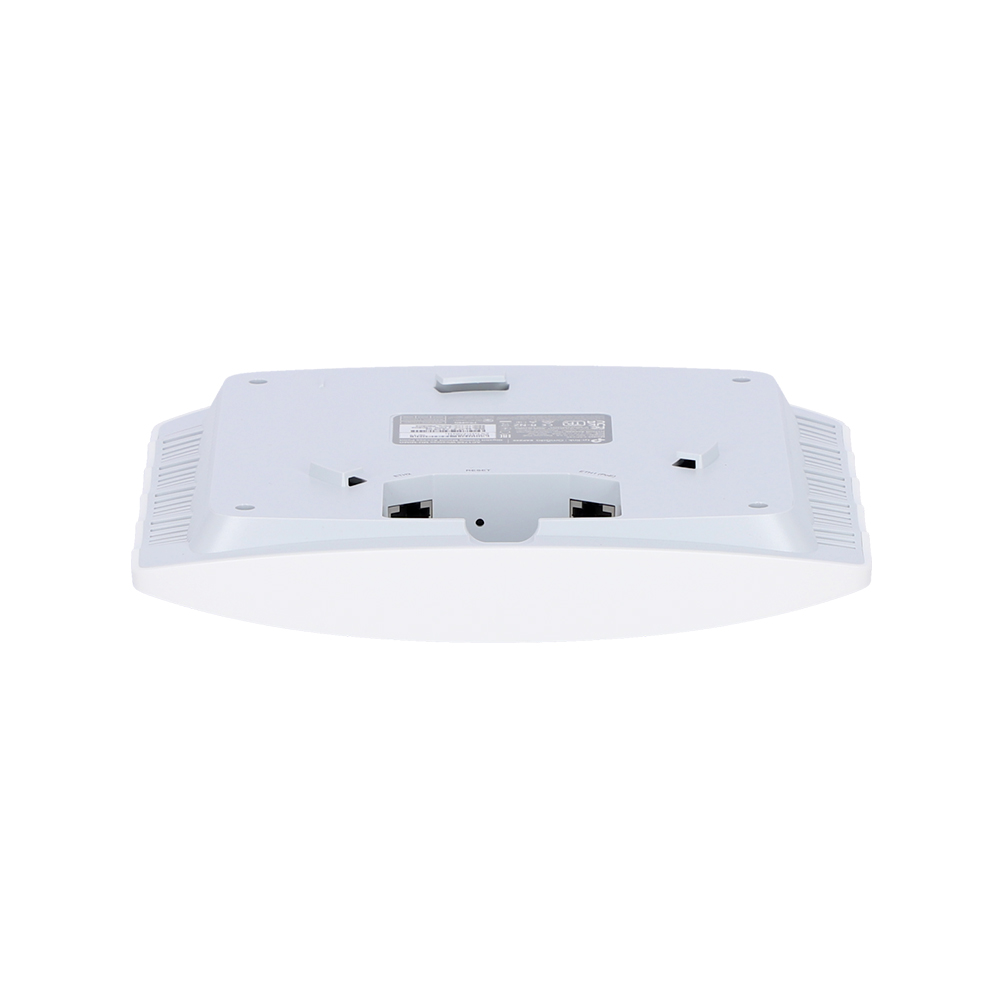

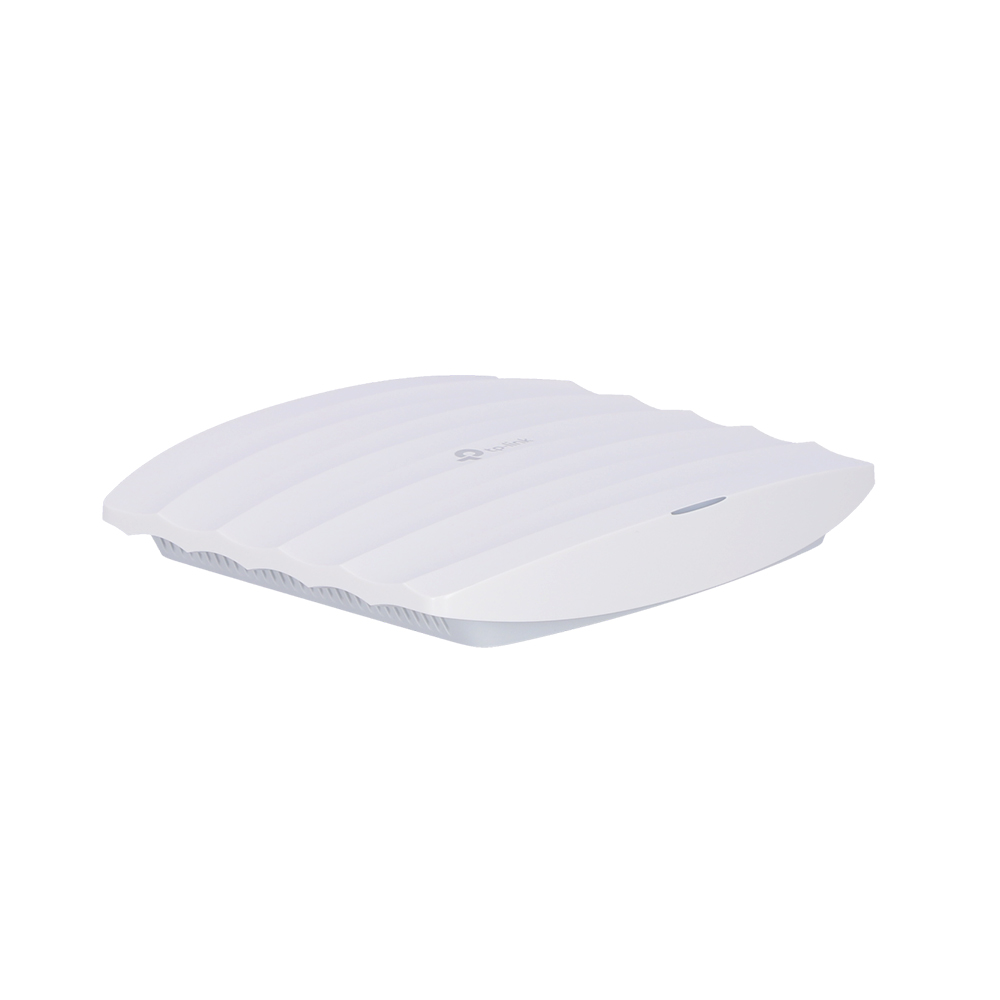

Access Point TP-LINK (EAP245) Wireless AC1750 Dual Band Gigabit

หมวดหมู่: NETWORK Wireless

รหัสสินค้า : PCODE2023000661
฿ 3,390.00

Access Point TP-LINK (EAP245) Wireless AC1750 Dual Band Gigabit

  • Wireless Standards : IEEE 802.11ac/n/g/b/a
  • Signal Rate: Wireless AC1750
    • 5 GHz: Up to 1300 Mbps
    • 2.4 GHz: Up to 450 Mbps
  • Interface : 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3at PoE and Passive PoE In. Another port supports Passive PoE Out, and the power consumption of its downlink terminal devices should not exceed 5W)
  • Power Supply : 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) 802.3at PoE
  • Mounting : Ceiling /Wall Mounting
  • Antenna Type : 2 Internal Omni ( 2.4GHz: 3*3.5dBi , 5GHz: 3*4dBi )
  • Free EAP Controller Software lets administrators easily manage hundreds of EAPs
  • Support Power over Ethernet(802.3at) for convenient and affordable installation
  • Captive portal provides a convenient method for guest authentication
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • Load balance ensures large numbers of users have smooth network experiences in high density business networks
  • Supports management VLAN for an enhanced network management

ประกัน LT

รายละเอียดสินค้า Access Point TP-LINK (EAP245) Wireless AC1750 Dual Band Gigabit

AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point

EAP245

Features

  • - 1750Mbps wireless data rate for uninterrupted wireless connection
  • - Free Controller Software for easy centralized management of hundreds of EAPs
  • - Power over Ethernet(802.3at) Support for convenient and affordable installation
  • - Captive portal provides one convenient method of authentication for Wi-Fi guests
  • - Simple mounting design makes easy to install on any wall or ceiling surface
  • - Rate limit on per SSID to restrict the bandwidth of each client
  • - Load balance ensures large numbers of users have smooth network experiences in high density business networks
  • - Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • - Access Control restricts or only allows the client to access the specified network segment
  • - Reboot Schedule enables all the APs to reboot automatically at a specified time
  • - WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
  • - Multi-SSID divides multiple wireless network for different users
  • - Compatible with 802.11 a/b/g/n/ac products
  • - Multiple operating modes including managed AP and standalone AP satisfy different application conditions
  • - Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services

คุณสมบัติ Access Point TP-LINK (EAP245) Wireless AC1750 Dual Band Gigabit

BrandTP-LINK
Model

EAP245

Standards and Protocol

IEEE 802.11ac/n/g/b/a

Antenna

Internal Omni
2.4GHz: 3 x 4dBi
5GHz: 3 x 4dBi

Frequency Range

2.4GHz and 5GHz

Wireless Transmit Power

CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<27dBm(2.4GHz & 5GHz)

Interface

x1 Gigabit Ethernet (RJ-45) Port Support IEEE802.3at PoE

Data Rates

5GHz : Up to 1300Mbps
2.4GHz : Up to 450Mbps

Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK

PoE

802.3af/A PoE
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Supply

PoE or External 12VDC / 1.5A Power Supply

Power Consumption

Power Consumption : 12.7 W

Environment

Operating Temperature : 0℃~40℃ (32℉~104℉)
Storage Temperature : -40℃~70℃ (-40℉~158℉)
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 5%~90% non-condensing

Certifications

CE, FCC, RoHS

Package Contents

AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
Gigabit Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide

Management / Configuration / Tools

EAP Controller Software
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
System Logging Local/Remote Syslog
Telnet
Web-based Management HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN

Support Operating System

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Wall/Ceiling Mount

Mounting : Ceiling /Wall Mounting (Kits included)
Physical Security Lock : Kensington Lock Slot
Watch Dog : Yes

Package Dimension(W x D x H) : 23.00 x 34.00 x 7.00 cm
Gross Weight1.00 KG
Volume5,474.00 cm3
