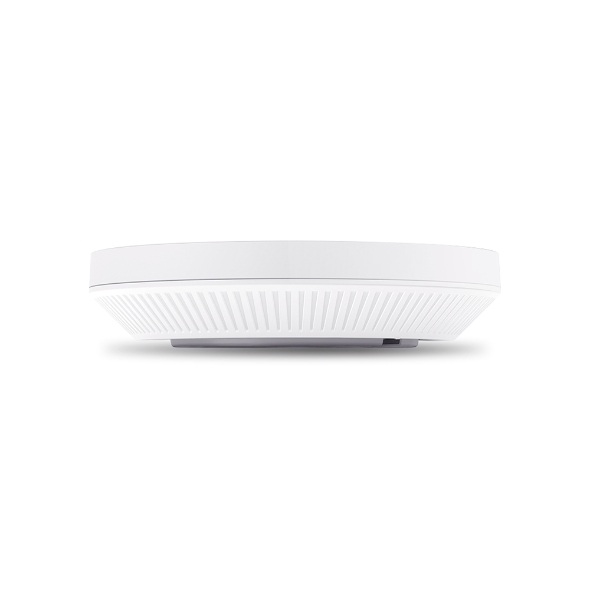

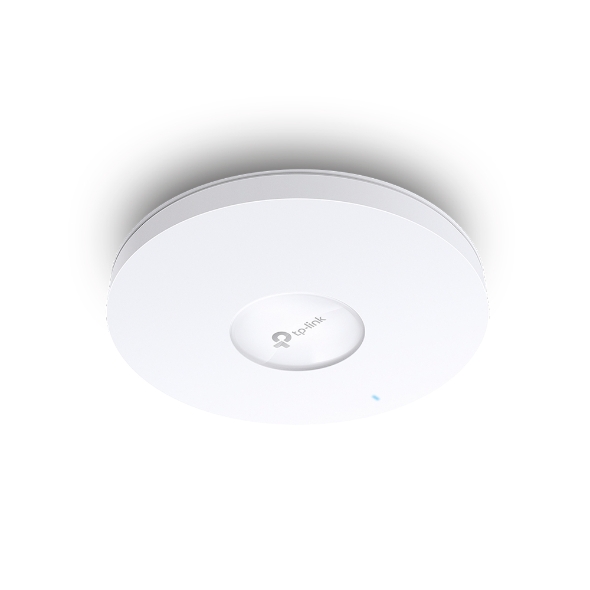

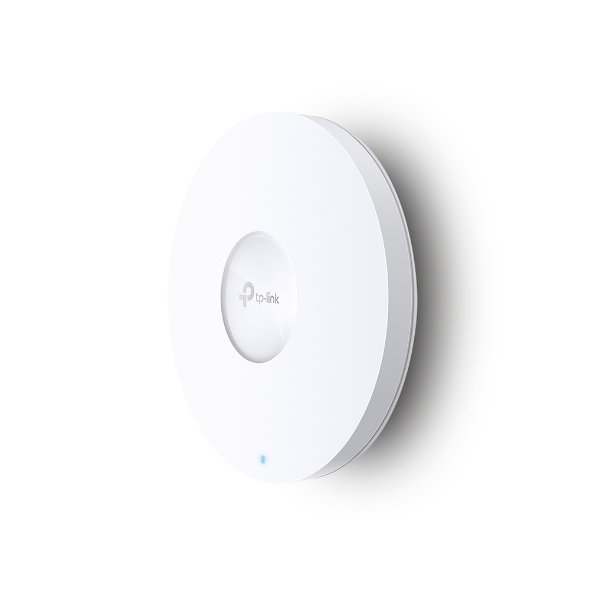

Access Point TP-LINK (EAP653) Wireless AX3000 Dual band Gigabit Wi-Fi 6

หมวดหมู่: NETWORK Wireless

รหัสสินค้า : PCODE2023000663
฿ 4,250.00

Access Point TP-LINK (EAP653) Wireless AX3000 Dual band Gigabit Wi-Fi 6

  • Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
  • Signal Rate : Wireless AX3000
    • 5 GHz: Up to 2402 Mbps
    • 2.4 GHz: Up to 574 Mbps
  • Interface : Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
  • Power Supply : 48V Passive PoE , 12V DC  , 802.3at PoE (DC adapter is not included)
  • Mounting : Ceiling /Wall Mounting
  • Antenna Type : Internal Omni Antenna ( 2.4GHz: 2*4dBi , 5GHz: 2*5dBi )
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
  • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

ประกัน LT

รายละเอียดสินค้า Access Point TP-LINK (EAP653) Wireless AX3000 Dual band Gigabit Wi-Fi 6

อ้างอิงจาก:https://www.tp-link.com

คุณสมบัติ Access Point TP-LINK (EAP653) Wireless AX3000 Dual band Gigabit Wi-Fi 6

BrandTP-LINK
Model

EAP653

Standards

IEEE 802.11ax/ac/n/g/b/a

Antennas

Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

Transmit/Receive

• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

Frequency

2.4 GHz and 5 GHz

Wireless Functions

• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

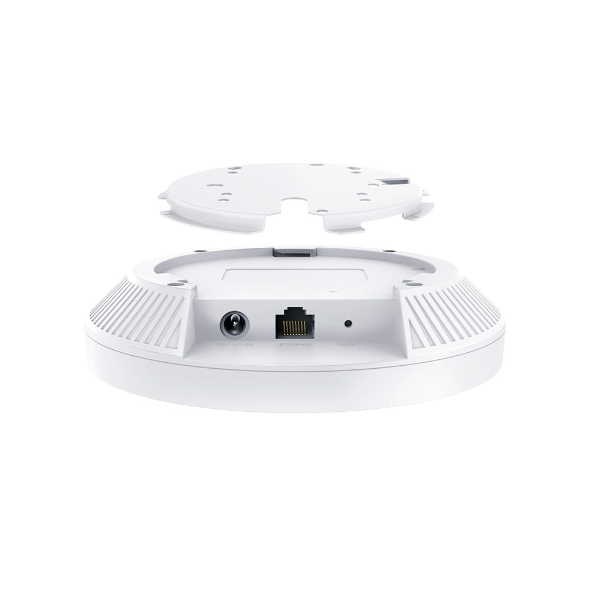

Interface

1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button

Reset

Management

Omada App :Yes

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access : Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

Email Alerts : Yes

LED ON/OFF Control : Yes

Management MAC Access Control : Yes

SNMP : v1, v2c, v3S

ystem Logging Local/Remote Syslog : Local/Remote Syslog

SSH :Yes

Web-based Management ; HTTP/HTTPS

L3 Management ; Yes

Multi-site Management : Yes

Management VLAN : Yes

Zero-Touch Provisioning : Yes . Requiring the use of Omada Cloud-Based Controller.

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Mounting

• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

Power Supply

12V DC

Power Supply (PoE)

• 802.3at PoE
• 12V DC
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
Note: DC adapter is not included in the package, and is sold separately.

Power Consumption

• EU: 13.5 W
• US: 14.7 W

Environment

• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Certification

CE, FCC, RoHS

Package Contents

• EAP653
• Ceiling/Wall Mounting Kits
• Installation Guide

Dimension(W x D x H) : 16.00 x 16.00 x 3.36 cm
Net Weight0.00 KG
Package Dimension(W x D x H) : 24.50 x 23.00 x 6.50 cm
Gross Weight0.70 KG
Volume3,662.75 cm3
