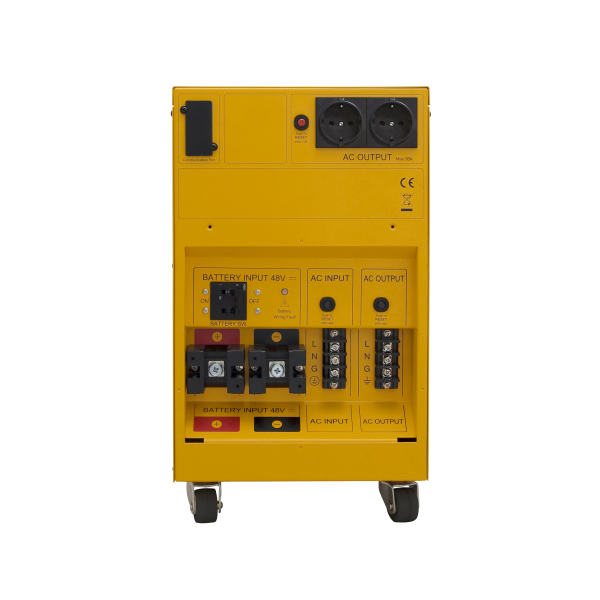

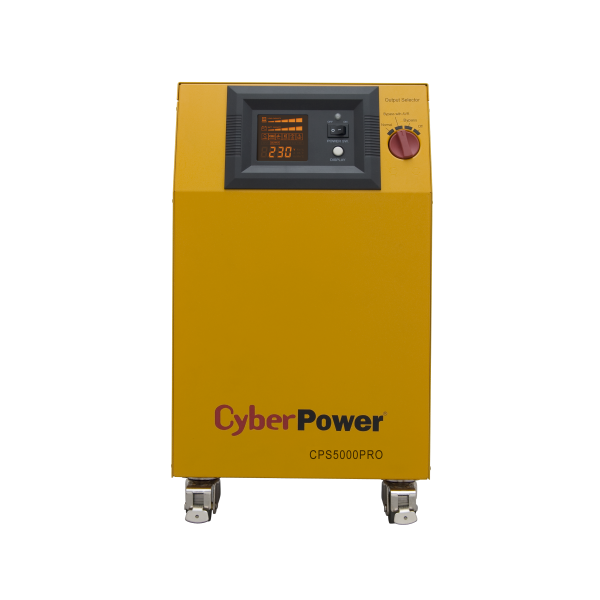

CPS5000PRO

หมวดหมู่: Cyberpower

รหัสสินค้า : PCODE2024000864
฿ 53,500.00

GENERAL

Phase
Single Phase
Capacity (VA)
5000
Capacity (Watts)
3500

INPUT

Generator Compatibility
Yes
Nominal Input Voltage ( Vac )
220
230
240
Input Voltage Range ( Vac )
140 ~ 300 Vac
Input Frequency ( Hz )
50 ± 5
60 ± 5
Input Frequency Detection
Auto-sensing
Input Connector Type
Hardwire Terminal Block
DC Input Voltage ( Vdc )
48

OUTPUT

Output Waveform
Pure Sine Wave
Output Voltage(s) ( Vac )
220 ± 5%
230 ± 5%
240 ± 5%
Output Voltage Setting
Configurable
Output Frequency ( Hz )
50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost, Single Buck
Overload Protection (On Utility)
Circuit Breaker
Overload Protection (On Battery)
Internal Current Limiting
Manual Switch
Normal, Bypass with AVR, Bypass, Off
Outlet(s) – Total
3
Outlet Type
Hardwire Terminal Block x 1
UK x 2
Auto-charge
Yes
Typical Transfer Time ( ms )
10

SURGE PROTECTION & FILTERING

Lightning / Surge Protection
Yes

MANAGEMENT & COMMUNICATIONS

LCD Panel
Yes
LCD Information Display
Operation Type , Power Status , Battery Status , Load Status , Other Information , Event & Log
LCD Setting & Control
Alarm Setting , Input & Output , Battery Setting
LED Indicators
Power On , Wiring Fault
Audible Alarms
Battery Mode , Low Battery , Overload , Overcharge , Overheat
Power Management Software
PowerPanel® Business (with optional RMCARD)
SNMP / HTTP Remote Monitoring
Yes – with optional RMCARD205

PHYSICAL

Form Factor
Tower
Enclosure Construction
Metal
Color
Yellow
Wheels
Yes

PHYSICAL SIZE

Dimensions (WxHxD) (mm.)
260 x 440 x 330
Weight (kg.)
40.5

SHIPPING DIMENSIONS

Dimensions (WxHxD) (mm.)
370 x 555 x 445
Weight (kg.)
46

ENVIRONMENTAL

Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )
0 ~ 95
Operating Elevation ( feet/meters )
0-10,000 feet (0-3,000 meters)
Storage Temperature (°C)
-15 ~ 45
Storage Relative Humidity (Non-condensing) ( % )
0 ~ 95
Storage Elevation ( feet/meters )
0-50,000 feet (0-15,000 meters)

CERTIFICATIONS

Certifications
CE , EAC , SONCAP
RoHS
Yes

EXTERNAL BATTERY (OPTIONAL)

Battery Type
Sealed Lead-acid
Battery Voltage ( Vdc )
48

WARRANTY

Product Warranty Period (Year)
1
