Description

GENERAL

Phase: Single Phase

Capacity (VA): 7500

Capacity (Watts): 6000

INPUT

Generator Compatibility: Yes

Nominal Input Voltage ( Vac ): 220 230 240

Input Voltage Range ( Vac ): 140 ~ 300 Vac

Input Frequency ( Hz ): 50 ± 5 60 ± 5

Input Frequency Detection: Auto-sensing

Input Connector Type: Hardwire Terminal Block

DC Input Voltage ( Vdc ): 48

OUTPUT

Output Waveform: Pure Sine Wave

Output Voltage(s) ( Vac ): 220 ± 10%  230 ± 10%  240 ± 10%

Output Voltage Setting: Configurable

Output Frequency ( Hz ): 50 ± 1% 60 ± 1%

Automatic Voltage Regulation (AVR): Single Boost, Single Buck

Overload Protection (On Utility): Circuit Breaker

Overload Protection (On Battery): Internal Current Limiting

Manual Switch: Normal, Bypass with AVR, Bypass, Off

Outlet(s) – Total: 3

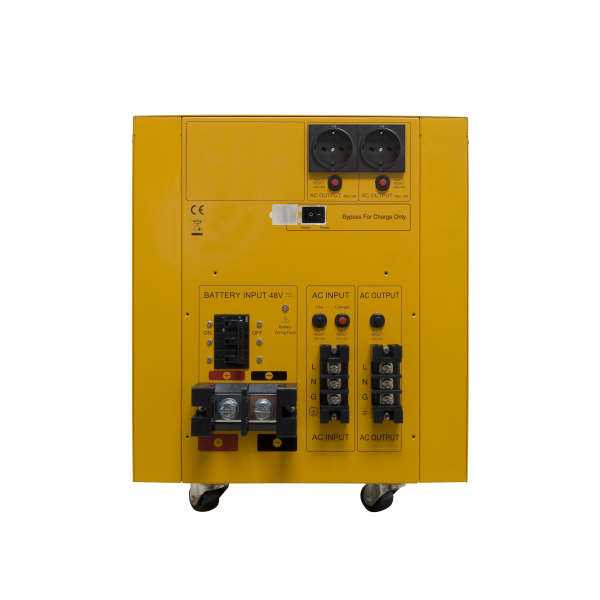

Outlet Type: Hardwire Terminal Block x 1 IN/ZA x 2

Auto-charge: Yes

Typical Transfer Time ( ms ): 10

SURGE PROTECTION & FILTERING

Lightning / Surge Protection: Yes

MANAGEMENT & COMMUNICATIONS

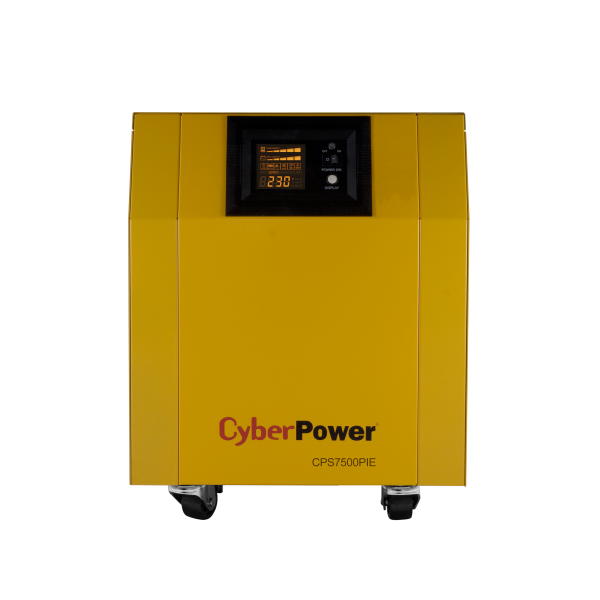

LCD Panel: Yes

LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Other Information, Event & Log

LCD Setting & Control: Alarm Setting, Input & Output, Battery Setting

LED Indicators: Power On, Wiring Fault

Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat

Power Management Software: PowerPanel® Business (Recommended)

SNMP / HTTP Remote Monitoring: Yes – with optional RMCARD205

PHYSICAL

Form Factor: Tower

Enclosure Construction: Metal

Color: Yellow

Wheels: Yes

PHYSICAL SIZE

Dimensions (WxHxD) (mm.): 355 x 440 x 370

Weight (kg.): 56.6

SHIPPING DIMENSIONS

Dimensions (WxHxD) (mm.): 458 x 555 x 518

Weight (kg.): 60.5

ENVIRONMENTAL

Operating Temperature (°C): 0 ~ 40

Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95

Operating Elevation ( feet/meters ): 0-9,843 feet (0-3,000 meters)

Storage Temperature (°C): -5 ~ 45

Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95

Storage Elevation ( feet/meters ): 0-49,213 feet (0-15,000 meters)

CERTIFICATIONS

Certifications: CE, EAC, SONCAP

RoHS: Yes

EXTERNAL BATTERY (OPTIONAL)

Battery Type: Sealed Lead-acid

Battery Voltage ( Vdc ): 48

WARRANTY

Product Warranty Period (Year): 2
