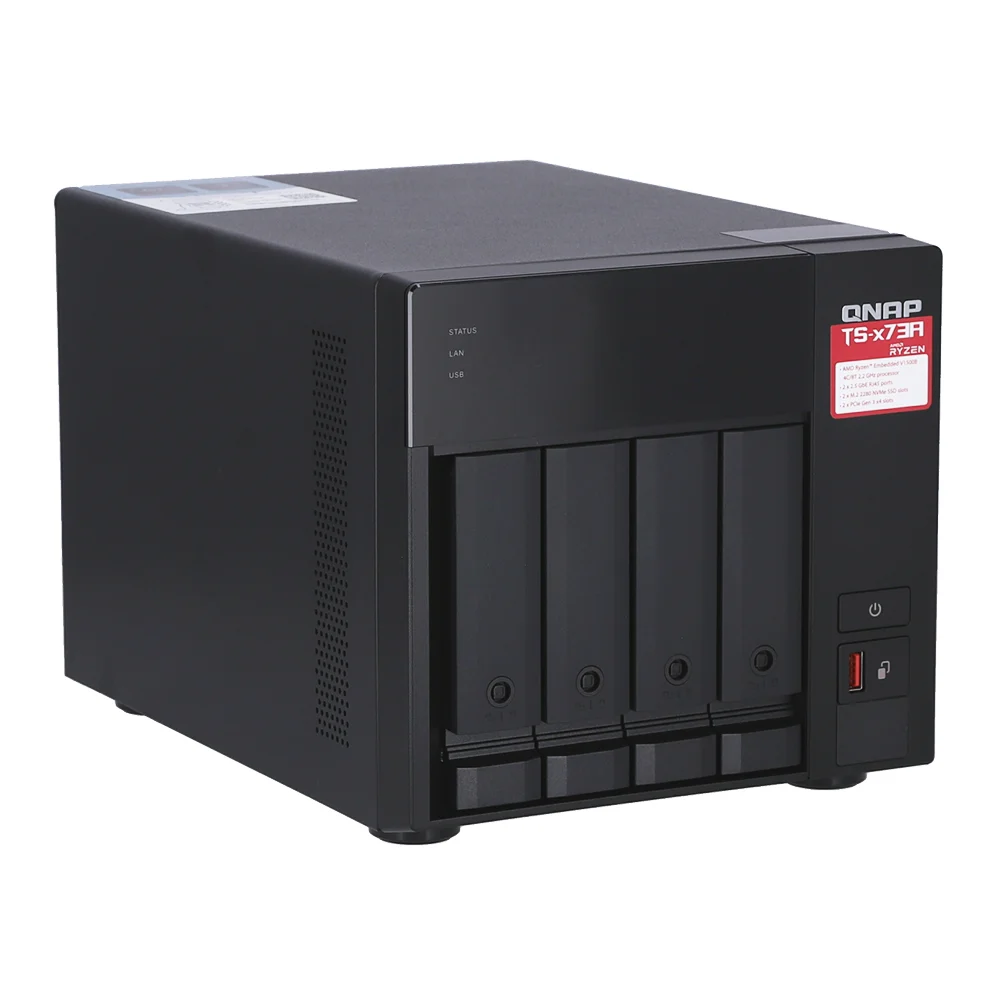

TS-473A-8G

AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor

QuTS hero h5.0.0

8 GB SODIMM DDR4 (1 x 8 GB)

3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

4

N/A

Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2

3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps

2(2.5G/1G/100M)

2

Power, Reset, USB Auto Copy

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

1. 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
2. 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
3. 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
4. 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
5. 2-bay: Single, RAID 0 (Stripe), 1

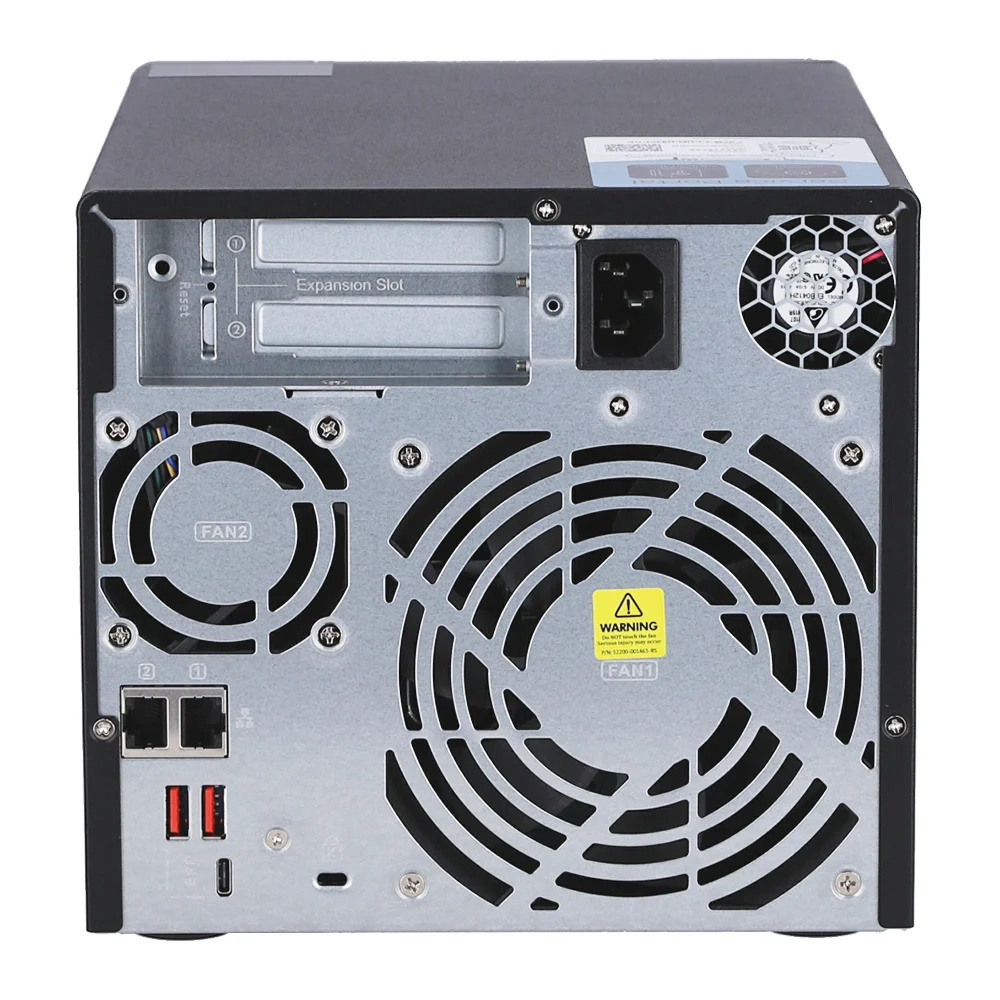

System fan: 1 x 120mm
CPU fan: 1 x 60mm

250W, 100-240V AC, 50-60Hz, 3.5A

Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A

Power Consumption: HDD Sleep Mode19.576 W

Power Consumption: Operating Mode, Typical29.792 W

Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)

TS-473A
Ethernet cable x 1
Power Cord x 1
Flat head screw x 12 (for 3.5" HDD)
Flat head screw x 12 (for 2.5" HDD)
M.2 SSD Heatsink x 2
Drive tray keys x 2
Quick Installation Guide (QIG)
