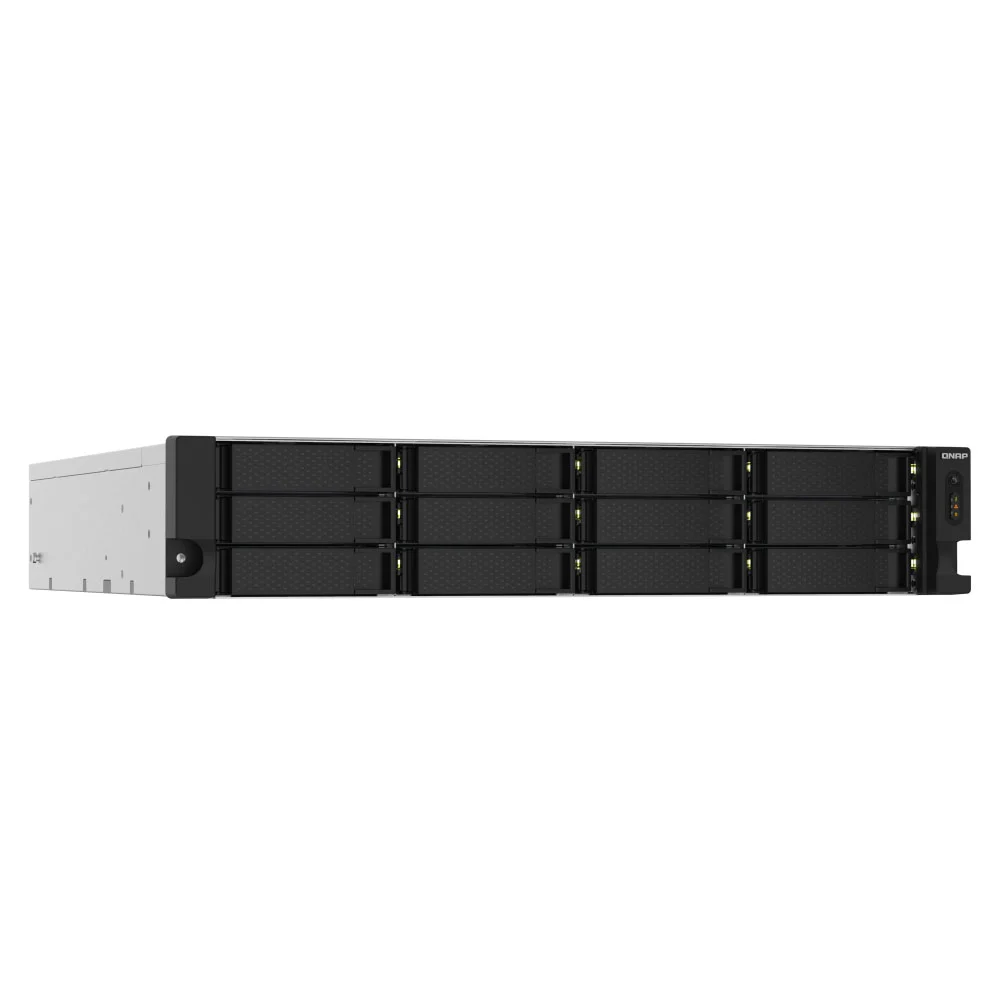

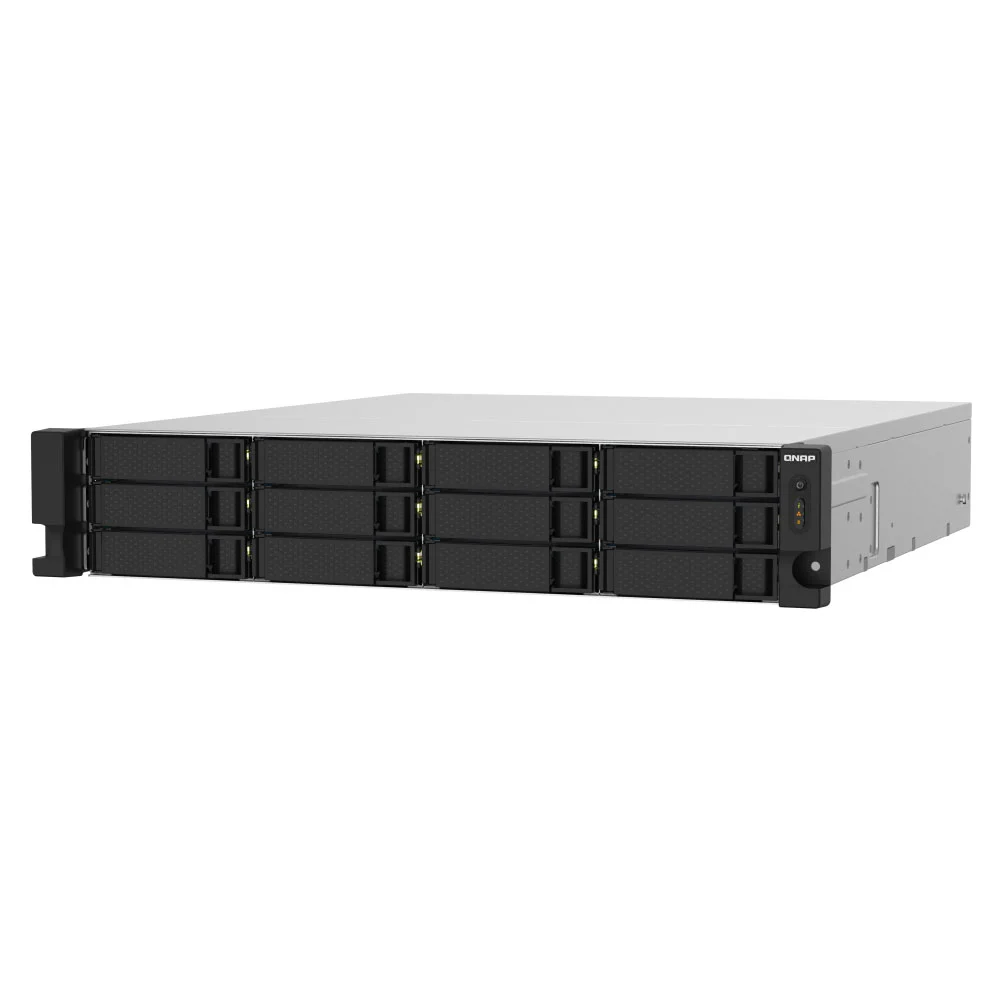

TS-1232PXU-RP-4G (Without HDD)

AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor, 64-bit ARM

QTS 5.1.3

4GB (1x4 GB) UDIMM DDR4

SATA (2.5" or 3.5")
Hot-swappable

12 x 3.5-inch SATA 6Gb/s, 3Gb/s

None

HDD 1-12, Status, LAN, Storage expansion

N/A

4 x USB 3.2 Gen 1

2 x 2.5 Gigabit Ethernet Port
2 x 10GbE SFP+

Video Station

Music Station

1 x UDIMM DDR4, Up to 16 GB

Power, Reset

PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)

IPv4, IPv6

8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1

N/A

Domain Security
Security Counselor

Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022

Max. Number of Concurrent Connections (CIFS) - with Max. Memory : 700

N/A

File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services

N/A

Wake on LAN (WOL) *Only the 2.5GbE port
2U Rackmount

2 x 70mm, 12VDC

250W (x2) PSU, 100 - 240V

Operating Mode, Typical : 83.57 W

Operating Temperature : 0 - 40 °C (32°F - 104°F)
Storage Temperature : -20 - 70°C (-4°F - 158°F)
Relative Humidity : 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)

N/A

TS-1232PXU-RP
Ethernet Cable x 1
Power Cord x 2
Flat head screw x 48 (for 3.5" HDD)
Flat head screw x 36 (for 2.5" HDD)
Quick Installation Guide (QIG)
