H410M H V2 (REV1.7) / Chipset Socket 1200 support for 10th Gen / RAM DDR4

หมวดหมู่: MAINBOARD (เมนบอร์ด)

รหัสสินค้า : ID25660073
฿ 2,190.00

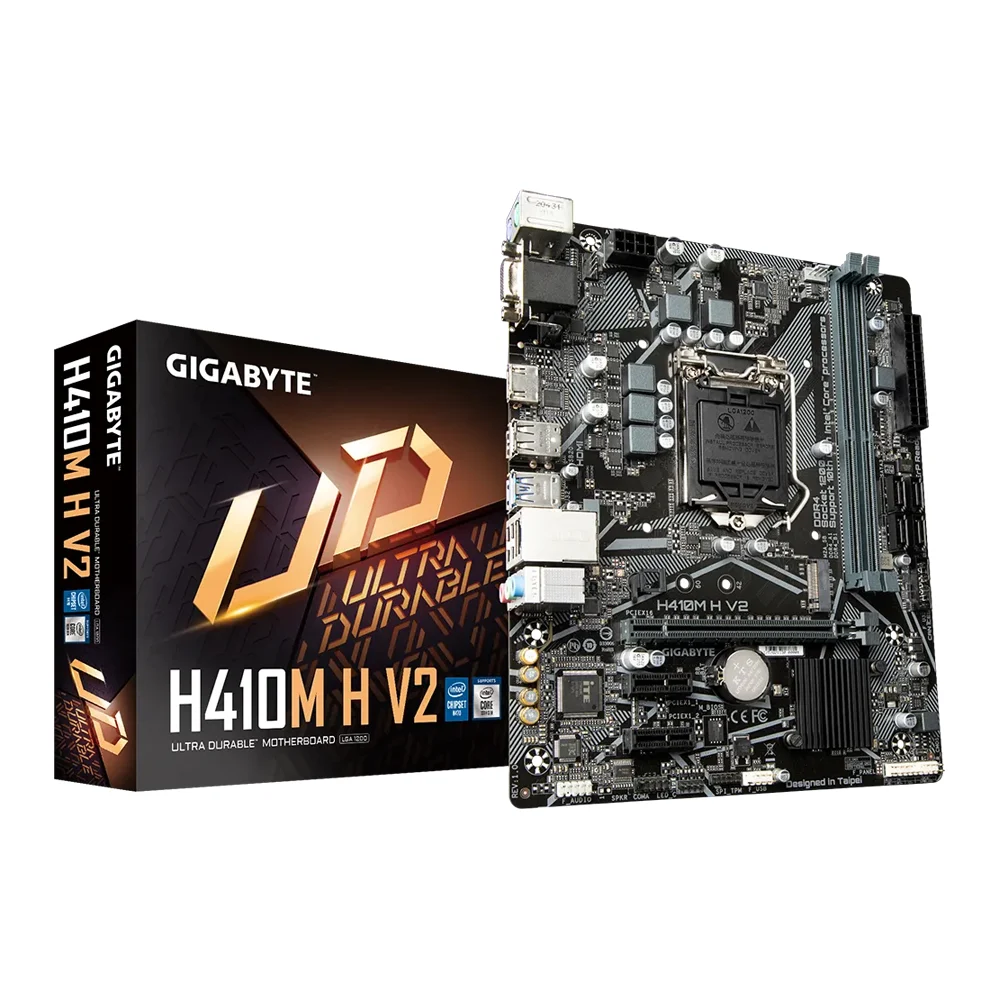

H410M H V2

Model : GA_H410M_H_V2_REV1.7

Description : H410M H V2 (REV1.7) / Chipset Socket 1200 support for 10th Gen / RAM DDR4

คุณสมบัติ

Model

Brand

Gigabyte

Model

H410M H V2

CPU

Socket

1200 (10th Gen - Comet Lake)

Wattage

125W

Chipset

H470

Series

Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium

Memory

Slot

2

Memory Type

DDR4

Max. Capacity

64 GB

Speed

2133 , 2400 , 2666 , 2933

Graphic & Audio

Graphic

Integrated Graphics Processor (Depends on CPU)

Audio

Realtek Audio CODEC

2/4/5.1/7.1-channel

Storage

SATA 2

- Port

SATA 3

4 Port

RAID

0/1/5/10

M.2

1 (1 x PCIe & SATA) Port

Expansion Slots

Details

No

Slot

1 x PCIe 3.0 x16 Slot , 2 x PCIe 3.0 x1 Slots

Network

LAN

Intel GbE LAN

LAN Speed

10/100/1000 Mbps

Wireless

No

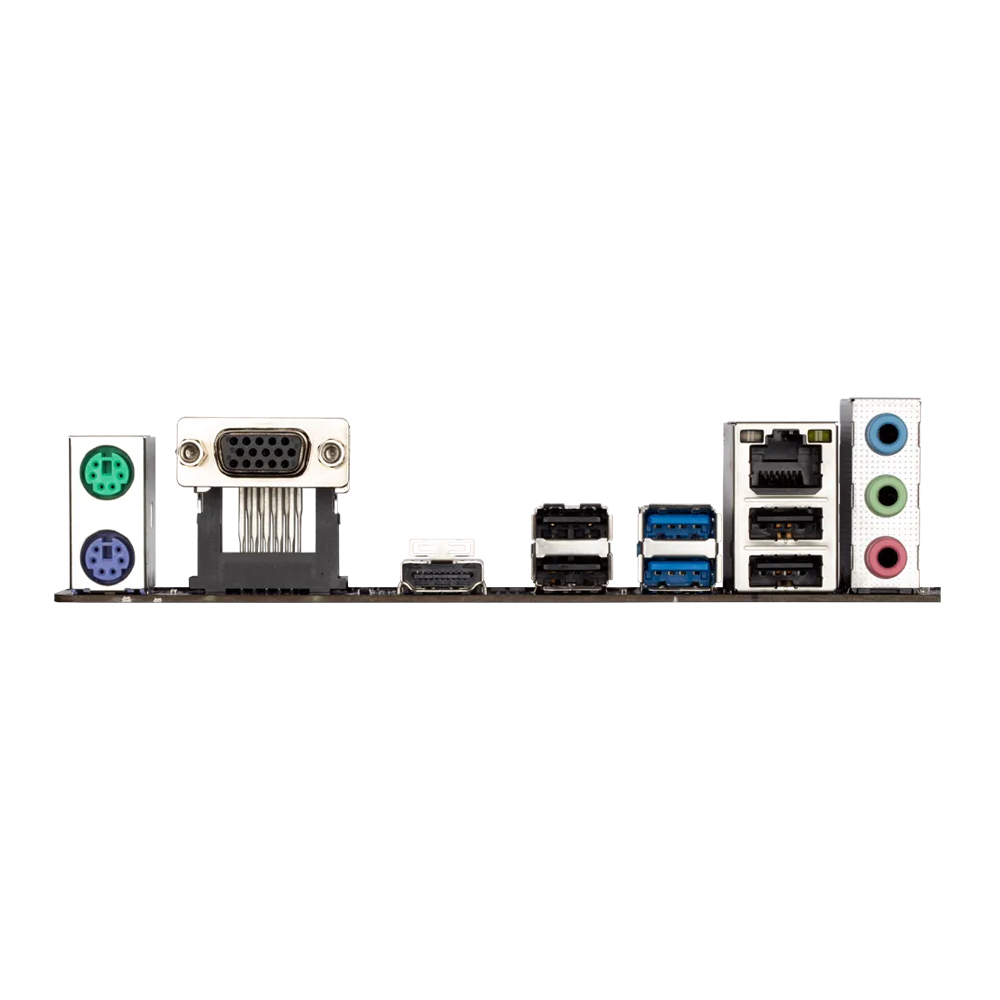

Back Panel I/O Ports

USB 2.0

4 Port

USB 3.0

- Port

USB 3.1

- Port

Serial

- Port

USB 3.2

2 Port

D-Sub (VGA)

1 Port

DVI

- Port

HDMI

1 Port

DisplayPort

- Port

Audio

3 Port

PS/2

1 (Keyboard/Mouse combo) Port

Additional

No

LAN

1 Port

Form Factor

Form Factor

Micro-ATX

Power Connector

24+8 Pin

Dimension

22.6 x 18.5 cm

Warranty

การรับประกัน

3 Years

รายละเอียดสินค้า


Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.





NVMe PCIe Gen3 x4 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

*Photos are for reference only.





Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

  • 4 Temperature Sensors
  • 2 Fan Pin Headers
  • All Fan Pin Headers Upgraded to Hybrid Fan Headers
  • Interoperable Fans and Sensors
  • Intuitive UI for Fan Control
